Manufacturer: Beech
Aircraft Model(s): 35-C33A, E33A, E33C, F33A, F33C, S35, V35, V35A, V35B, 36, A36
Applicable Engines: IO-520
PDF: BEECH 33,35 BONANZA, DEBONAIR, SA785CE (C2F00065STP)
| QTY | DESCRIPTION | ITEM # |

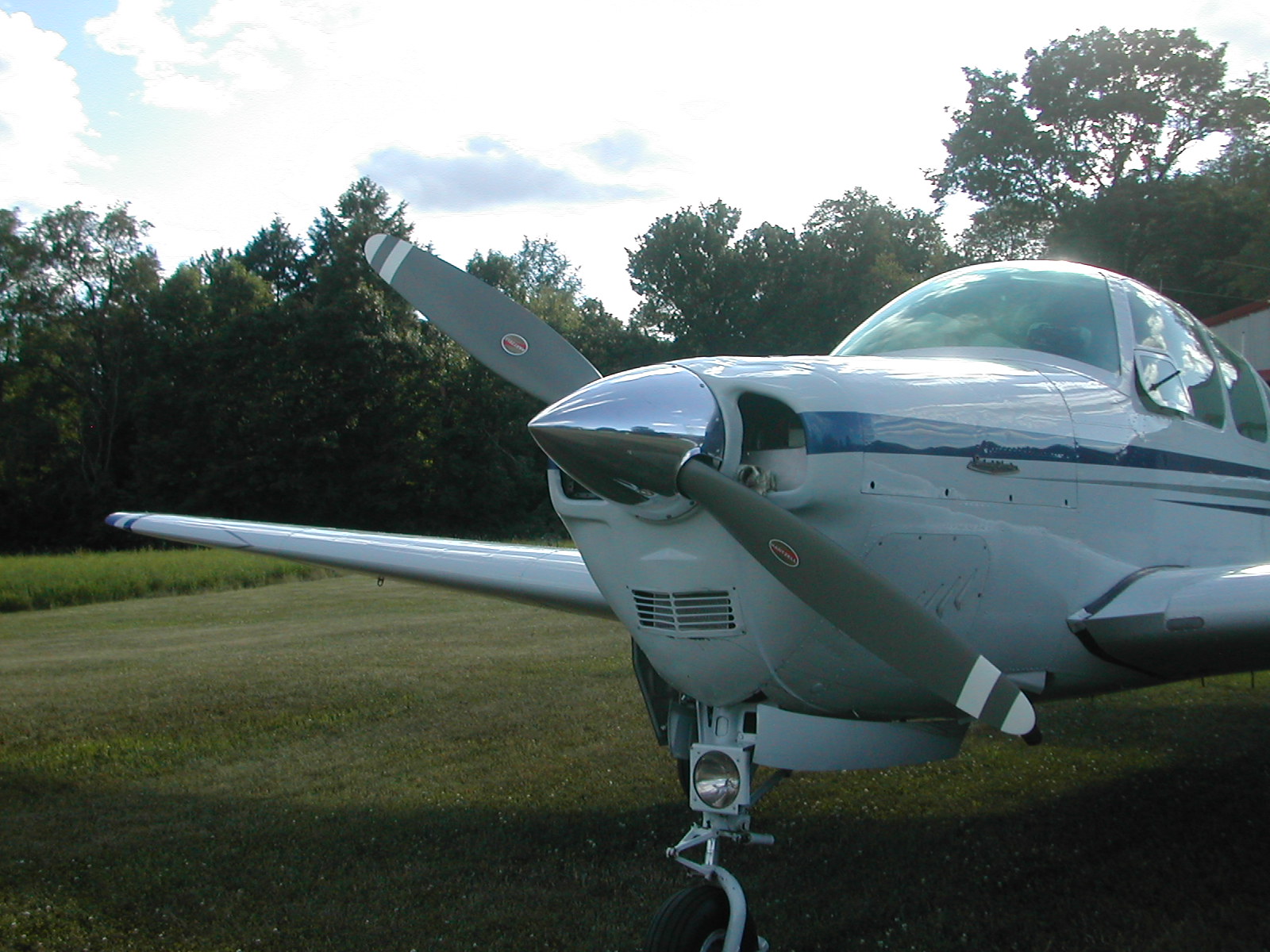

| 1 | 2-Bladed Propeller | BHC-C2YF-1BF/F8468AR |
| 1 | Polished Spinner | A-2295-P |
| 1 | STC Document Set | SA785CE |
Applicable Models:
35-C33A, E33A, E33C, F33A, F33C, S35, V35, V35A, V35B, 36, A36
Specifications:
84 inch diameter 2-bladed, aluminum hub propeller
2400 hour / 6 year TBO
51 pounds (prop)
diameter reduction allowable to 82 inches
Replaces:
McCauley C23 – 84 inch dia. 2-bladed prop
66 pounds (prop & spinner)
Oil fill requirement per AD 89-26-08
Diameter reduction allowable to 82 inches
1200 hours / 5 year TBO
McCauley C76 – 80 inch dia. 3-bladed prop
70 pounds (prop & spinner)
Diameter reduction allowable to 78.5 inches
1200 hours / 5 year TBO
Hartzell A3VF – 80 inch dia. 3-bladed steel hub prop
94 pounds (prop & spinner)
400 hour inspection per AD 68-13-2
Clamp inspection/replacement per AD 85-14-10
Blade retention system inspection AD 97-18-02
Diameter reduction allowable to 78.25 inches
Advantages:
Longer TBO
Lower cost
Current design (Mc threaded, Hz steel obsolete)
