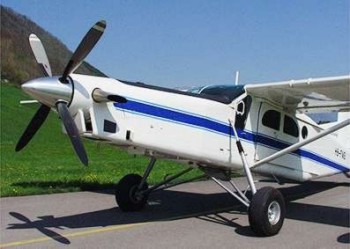

Manufacturer: Pilatus
Aircraft Model(s): PC-6/B1-H2, PC-6/B2-H2, or PC-6/B2-H4 Turbo Porter
Applicable Engines: PT6A-20 or -27 engine
PDF: Pilatus PC-6
| QTY | DESCRIPTION | ITEM # |
| 1 | 4-Bladed Propeller | HC-D4N-3P/D9511F |
| 1 | Polished Spinner | D-630-P |
| 1 | STC Document Set | SA377CH |
| DESCRIPTION | ITEM # | NOTES |
Applicable Models:
Pilatus PC-6/B1-H2, PC-6/B2-H2, or PC-6/B2-H4 Turbo Porter with Pratt & Whitney PT6A-20 or -27 engine
Specifications:
96 inch dia 4-bladed, light-weight, aluminum hub propeller
4000 hour / 6 year TBO
125 pounds (propeller and spinner)
Diameter reduction allowable to 95 inches
Governor change required – See Installation Instructions for details (governor not supplied)
De-ice equipment for this STC’ed prop is approved under Pilatus
Type Certificate 7A15.
Replaces:
Hartzell – 101.5” HC-B3TN-3D/T101731CN 3-bladed propeller
3000 hours/5 year TBO
123 pounds (prop)
Diameter reduction allowable to 99 inches
Hartzell – 101.5” HC-B3TN-3D/T10178CNR 3-bladed propeller
3000 hours/5 year TBO
123 – 130 pounds (prop)
Diameter reduction allowable to 99 inches
Advantages:
FAA STC SA377CH validated in China, France (EASA), Brazil, and Indonesia. Japan and Russia (pending).
Reduced diameter for improved clearance on unimproved runways
Longer TBO
Current light-weight aluminum hub design
Optional equipment on factory new aircraft
