Manufacturer: Pilatus
Aircraft Model(s): Pilatus PC-12/47E S/N 1576 and up
Applicable Engines: PT6A-67B or PT6A-67P engine
PDF: PC-12
| QTY | DESCRIPTION | ITEM # |
| 1 | 5-Bladed ASCII Composite Propeller | HC-E5A-3A/NC10245B |
| 1 | Polished Spinner | 105820P |
| 1 | Airframe De-ice Kit | 105940 |
| 1 | Gust-Lock Cover | 106515-012 |
Applicable Models:
Pilatus PC-12/47E S/N 1576 and up with PT6A-67B or PT6A-67P engine
Specifications:

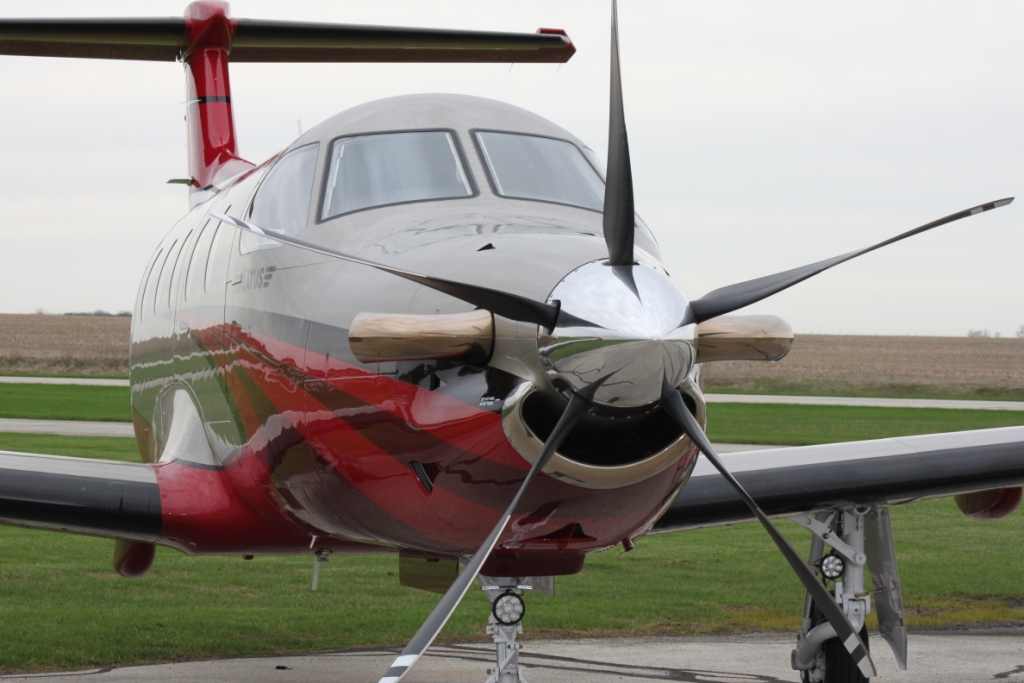

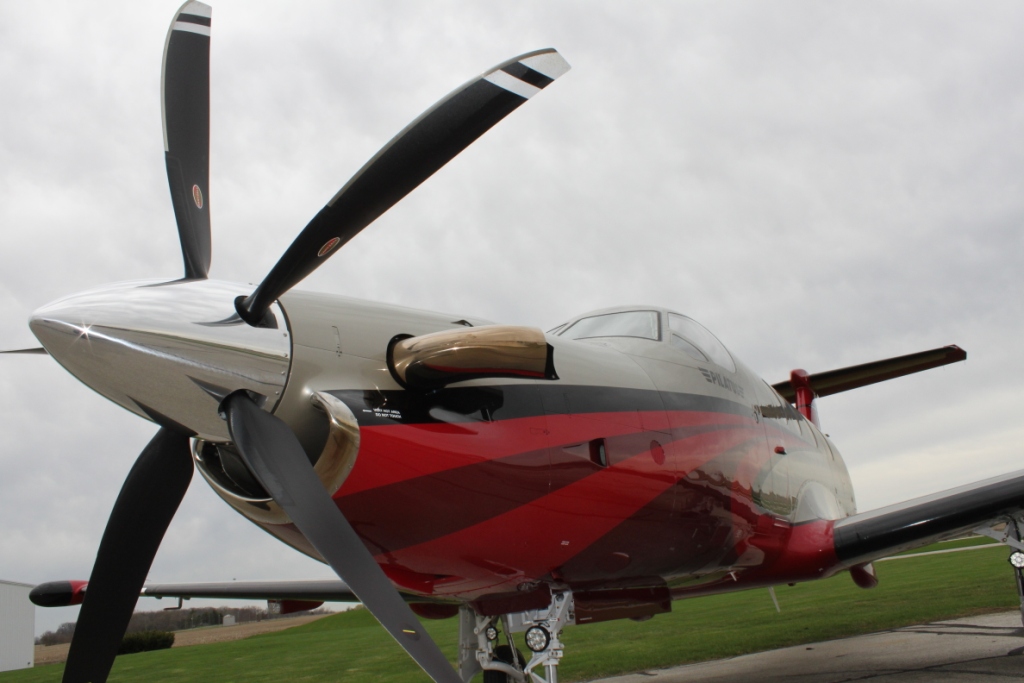

Hartzell 105 inch diameter 5-bladed, HC-E5A-3A/NC10245B*1 light-weight, aluminum hub propeller with all carbon
Advanced Structural Composite, Second Generation
(ASCII), swept-tip, scimitar composite blades
4000 hour / 6 year TBO
168.5 pounds (prop and spinner)
Advantages:
Carbon fiber construction allowing for thinner, stiffer airfoil design for better all around performance
Strongest material available with field replaceable nickel steel leading edge erosion shield – no lost performance due to reduced diameter
Best Warranty in the industry along with worldwide support.
Interested in more information? Fill out the form below and we’ll contact you shortly.
