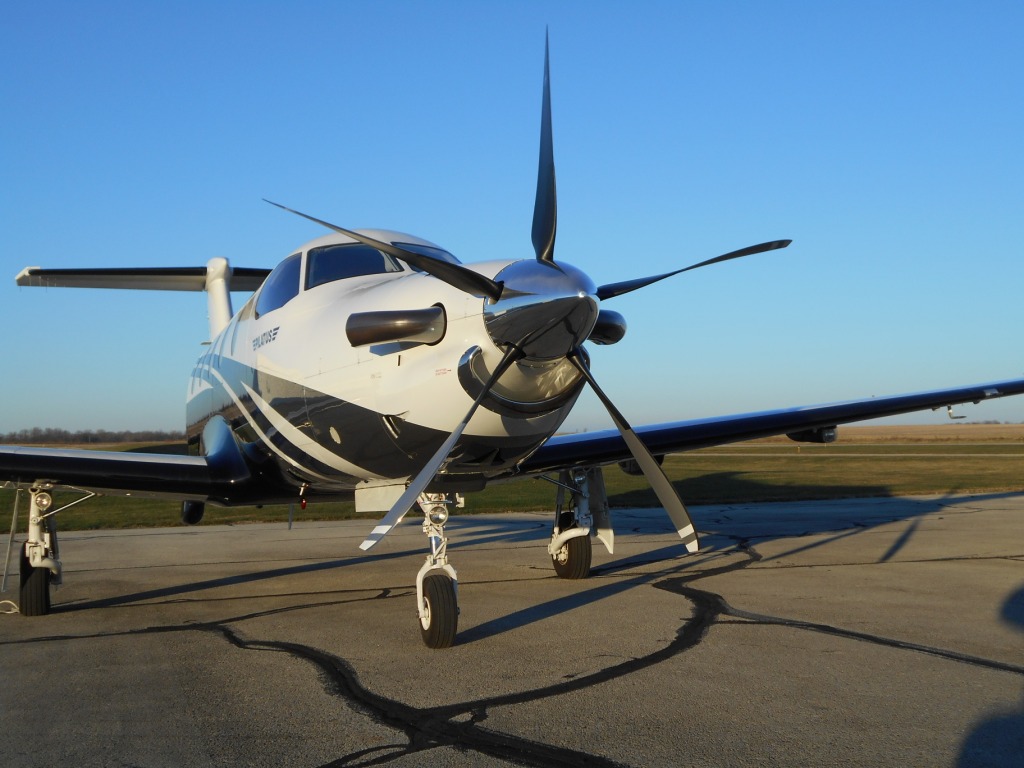

Manufacturer: Pilatus
Aircraft Model(s): Pilatus PC-12, PC-12/45, PC-12/47, PC-12/47E up to and including S/N 1575
Applicable Engines: PT6A-67B or PT6A-67P engine
PDF: Pilatus PC-12 up to and including s/n 1575
| QTY | DESCRIPTION | ITEM # |
| 1 | 5-Bladed ASCII Composite Propeller | HC-E5A-3A/NC10245B*1 |
| 1 | Polished Spinner | 105820P |
| 1 | Airframe De-ice kit | 105940 |
| 1 | STC Document Set | SA03466CH |
| 1 | Gust-Lock Cover | 106515-012 |
Applicable Models:
Pilatus PC-12, PC-12/45, PC-12/47, PC-12/47E up to and including S/N 1575
Specifications:

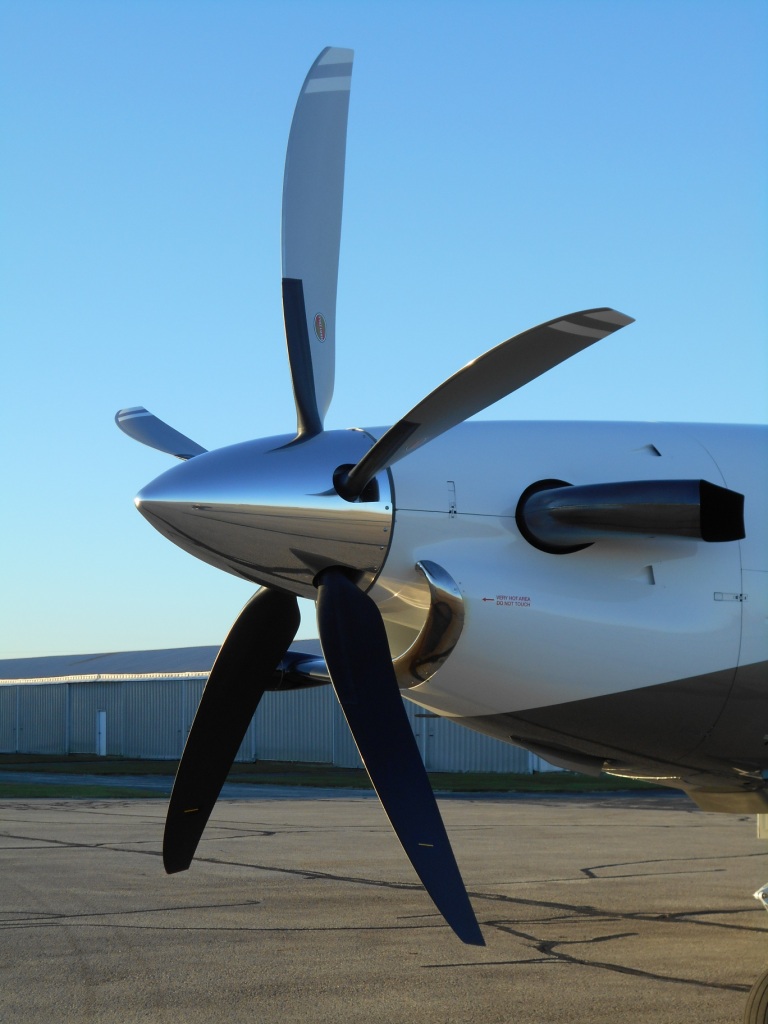

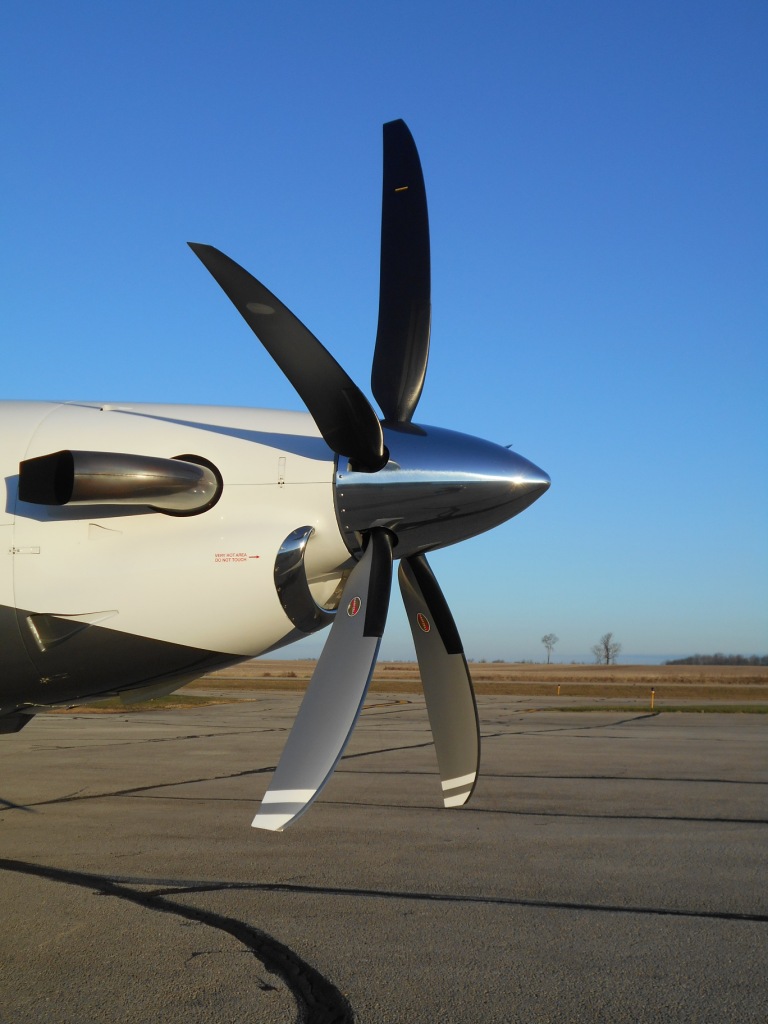

Hartzell 105 inch diameter 5-bladed, HC-E5A-3A/NC10245B*1
light-weight, aluminum hub propeller with all carbon
Advanced Structural Composite, Second Generation
(ASCII), swept-tip, scimitar composite blades
4000 hour / 6 year TBO
168.5 pounds (prop and spinner)
Advantages:
Carbon fiber construction allowing for thinner, stiffer airfoil design for better all around performance
Over 10% improved take-off acceleration (0-90 knots)
Up to 100 fpm better ROC
2-3 knots cruise speed increase
Reduced weight
Fly-over noise significantly reduced
No change in RPN limitations or placards
Strongest material available with field replaceable nickel steel leading edge erosion shield – no lost performance due to reduced diameter
Best warranty in the industry along with worldwide support
